Ohmite offers a selection of TO-247 and larger devices in heat sinkable packages, it is no surprise that Ohmite offers thermal solutions for these devices. Ohmite offers multiple sizes and configurations to accommodate many application needs and designs. Ohmite offers standard screw mount and patented clipping systems for these devices. Custom options are offered in many product series. Ohmite offers expandable options and multiple extrusion lengths to accommodate these larger devices.

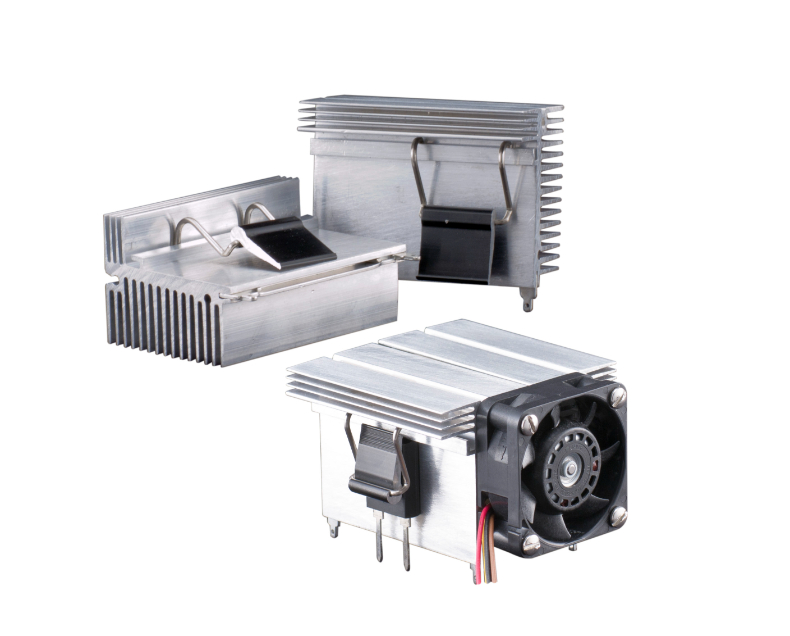

C Series Heatsink
Designed for TO-126, TO-220, TO-247 and TO-264 devices. This extruded heatsink offers multiple lengths and sizes. Each extrusion utilizes the patented clipping system. This system requires on… Read More
AH Series Extrusions
The AH Series of extruded heatsinks has been discontinued as of December 2018. Customers can review the Ohmite HS series of extrusions for mounting of popular aluminum housed resistors. Please… Read More

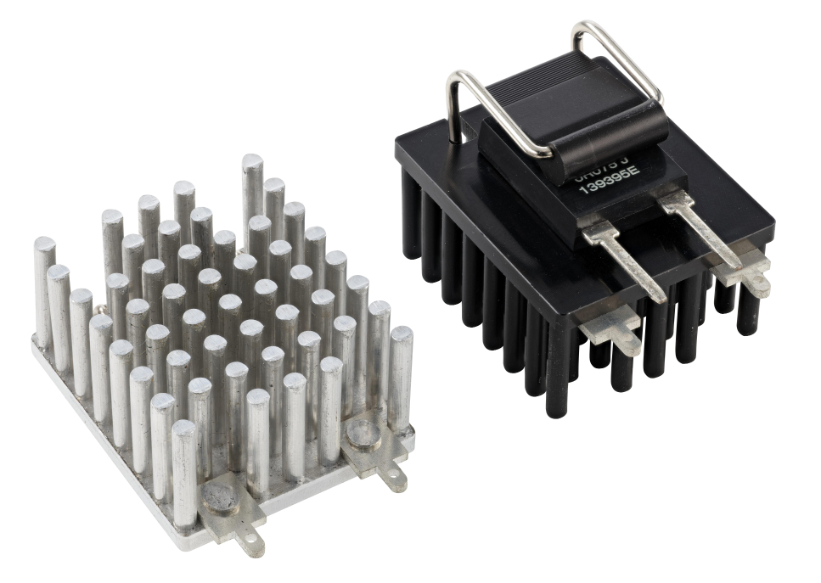

P Series Heatsink
The new P series heatsink from Ohmite uses Forged Pin technology. The forged pins increase the surface area for greater free air convection. Forced air convection applications will benefit from… Read More
EX Series Heatsink
The EX series of aluminum extruded heatsinks can accommodate TO-220, TO-247, and D34 packages. To achieve a Thermal performance of 12.4°C/W, each EX heatsink contains threaded mounting screw… Read More
HS Series Heatsink
If you are using popular aluminum housed resistors, look no further than the HS series extruded heatsinks to complete your design. Each heatsink is drilled and tapped to the standard pattern… Read More
.jpg)
VX Series Heatsink
If you are using popular SOT-227 devices or the Ohmite TGHE series, look no further than the VX series extruded heatsinks to complete your design. Each heatsink is drilled and tapped to the standard… Read More
VR Series Heatsink
If you are using popular IXYS devices or the Ohmite CS10 series, look no further than the VR series extruded heatsinks to complete your design. Each heatsink is designed with a cam clips system… Read More
C-40 Series Heatsink
The C40 Series Heat Sink System (Patent Pending) offers flexible, high performance and compact heatsinks with an exchangeable cam clip system for TO-247, TO-264 devices. This powerful heat sink… Read More
C-60/B-60 Series Heatsinks
Ohmite introduces the powerful B60/ C60 series heatsink with cam clip (Pat. Pending) or custom mounting. The B60/C60 series offers flexibility, high performance, and a compact heat sink design… Read More
F and R Series Heatsink
The Ohmite E series is offered in multiple extrusion lengths and is black anodized to provide great thermal performance in natural convection applications. This extrusion form can be used for… Read More

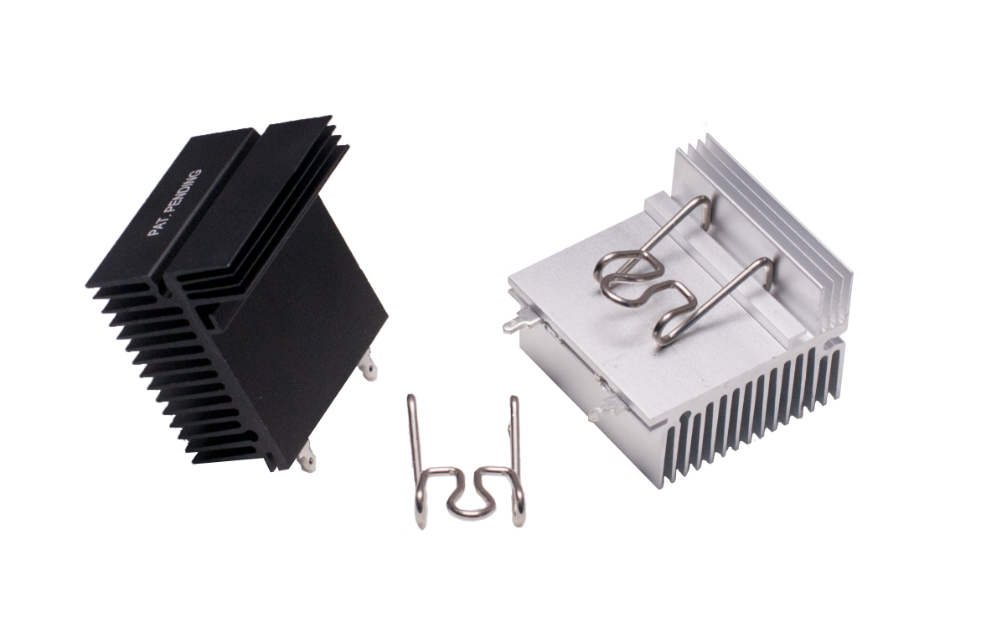

C2 Series Heatsink
Ohmite introduces the C2 series heatsink with cam clip (Pat. Pending). The C2 series design offers a lower profile while still maintaining a great surface area adding to the thermal performance.… Read More
CR Series Heatsink
Ohmite introduces the CR series heatsink with cam clip (Pat. Pending). The CR series design offers maximum theraml performance for high power density small and mid sized electronics packages.… Read More
M Series Heatsink
-Select Part Numbers Discontinued October 2021- Ohmite introduces the patented M series. The multiple advantages of this Ohmite M series heatsink are high performance, low cost, configurable,… Read More
CP4 Series Chillplate
The Ohmite CP4 series Liquid Coldplates are designed for Ohmite heatsinkable type resistors, such as TAP600, TAP800, TA1K0, TA2K0, and various SOT-227 resistor packages. The CP4 series also provides… Read More
R2 Series Heatsink
Starting March 2020- R2 Series is no longer available for TO-220 style packages Ohmite’s R2 Series (patent pending) heatsink provides a large surface area along with our C Series clipping… Read More
VM Series Heatsink
-Part number VM3-038-1AE has been discontinued as of October 2021- Ohmite introduces this new versatile heatsink design with the VM series heatsink. This new design can accommodate several different… Read More
WC Series Heatsink
The WC series is produced using high purity ceramic. The WC is non-conductive producing electrical isolation for high voltage devices. Aluminum heatsinks require isolating materials to achieve… Read More
W Series Heatsink
The unique design (patent pending) of the W Series heat sinks combines a tin-plated, solderable, integral spring clip with an extruded aluminum heat sink body for an all-in-one solution to through-hole… Read More

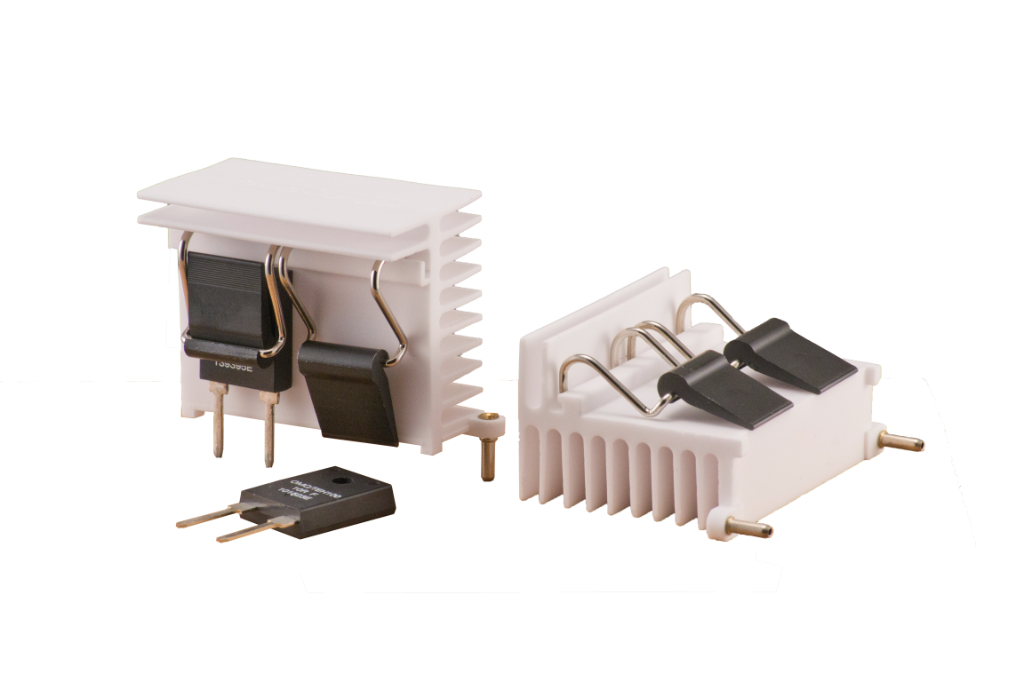

CA Series Heatsink
Discontinued December 2019 The CA series is a ceramic heatsink capable of handling two devices. This dual ceramic heatsink utilizes the same patented cam lock clips used in many Ohmite heatsinks.… Read More
