Resistor Mounting Hardware

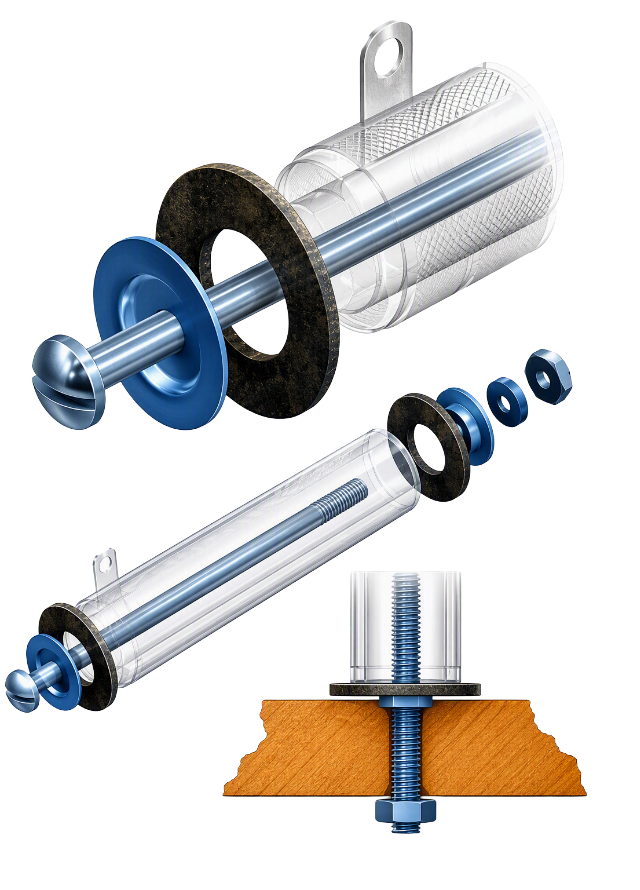

Ohmite offers many types of mounting hardware for its resistors and rheostats. Options may include slide-in clips or thru-bolts. The thru-bolt option also includes a choice of elongated or slotted feet. The slotted feet allow the brackets to be detached without having to remove the mounting screws. Multiple parts may be mounted on one bracket assembly vertically. This mounting option allows customers to produce custom load banks or combine several resistors together.

Mounting options for:

More Mounting Hardware

210 Series

270 Series

Part # L12xxxx

270 Series
Power Rating: 12 Watts
Core Length: 1.75"
Core Code: D
Push-In
Ohmite Part # 5E (cold rolled steel), 5S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA10
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120D-1.75
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121D-1.75
Check Availability
Not Available for this resistor series:
  • Single Resistor / Thru-bolt, Slotted
  • Two Resistors / Thru-bolt, Slotted
  • Three Resistors / Thru-bolt, Slotted
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # L25xxxx

270 Series
Power Rating: 25 Watts
Core Length: 2"
Core Code: K
Push-In
Ohmite Part # 9E (cold rolled steel), 9S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA25
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6101-2
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120K-2
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6102-2
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121K-2
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6103-2
Check Availability
Not Available for this resistor series:
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # L50xxxx

270 Series
Power Rating: 50 Watts
Core Length: 4"
Core Code: K
Push-In
Ohmite Part # 9E (cold rolled steel), 9S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA50
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6101-4
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120K-4
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6102-4
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121K-4
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6103-4
Check Availability
Not Available for this resistor series:
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # L100xxxx

270 Series
Power Rating: 100 Watts
Core Length: 6.5"
Core Code: M
Push-In
Ohmite Part # 12E (cold rolled steel), 12S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA100
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6104-6.5
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6122M-6.5
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6105-6.5
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6123M-6.5
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6106-6.5
Check Availability
Three Resistors / Thru-bolt, Elongated
Ohmite Part # 6124M-6.5
Check Availability
Four Resistors / Thru-bolt, Elongated
Ohmite Part # 6125M-6.5
Check Availability


Part # L175xxxx

270 Series
Power Rating: 175 Watts
Core Length: 8.5"
Core Code: P
Push-In
Ohmite Part # 18E (cold rolled steel), 18S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA160
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6110-8.5
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6126P-8.5
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6111-8.5
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6127P-8.5
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6112-8.5
Check Availability
Three Resistors / Thru-bolt, Elongated
Ohmite Part # 6128P-8.5
Check Availability
Four Resistors / Thru-bolt, Elongated
Ohmite Part # 6129P-8.5
Check Availability


Part # L225xxxx

270 Series
Power Rating: 225 Watts
Core Length: 10.5"
Core Code: P
Push-In
Ohmite Part # 18E (cold rolled steel), 18S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA200
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6110-10.5
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6126P-10.5
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6111-10.5
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6127P-10.5
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6112-10.5
Check Availability
Three Resistors / Thru-bolt, Elongated
Ohmite Part # 6128P-10.5
Check Availability
Four Resistors / Thru-bolt, Elongated
Ohmite Part # 6129P-10.5
Check Availability


Part # D12xxxx

210 Series
Power Rating: 12 Watts
Core Length: 1.75"
Core Code: D
Push-In
Ohmite Part # 5E (cold rolled steel), 5S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA10
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120D-1.75
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121D-1.75
Check Availability
Not Available for this resistor series:
  • Single Resistor / Thru-bolt, Slotted
  • Two Resistors / Thru-bolt, Slotted
  • Three Resistors / Thru-bolt, Slotted
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # D20xxxx

210 Series
Power Rating: 20 Watts
Core Length: 2"
Core Code: H
Push-In
Ohmite Part # 7E (cold rolled steel), 7S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA20
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120H-2
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121H-2
Check Availability
Not Available for this resistor series:
  • Single Resistor / Thru-bolt, Slotted
  • Two Resistors / Thru-bolt, Slotted
  • Three Resistors / Thru-bolt, Slotted
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # D25xxxx

210 Series
Power Rating: 25 Watts
Core Length: 2"
Core Code: K
Push-In
Ohmite Part # 9E (cold rolled steel), 9S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA25
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6101-2
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120K-2
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6102-2
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121K-2
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6103-2
Check Availability
Not Available for this resistor series:
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # D50xxxx

210 Series
Power Rating: 50 Watts
Core Length: 4"
Core Code: K
Push-In
Ohmite Part # 9E (cold rolled steel), 9S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA50
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6101-4
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120K-4
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6102-4
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121K-4
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6103-4
Check Availability
Not Available for this resistor series:
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # D75xxxx

210 Series
Power Rating: 75 Watts
Core Length: 6"
Core Code: K
Push-In
Ohmite Part # 9E (cold rolled steel), 9S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA75
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6101-6
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6120K-6
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6102-6
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6121K-6
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6103-6
Check Availability
Not Available for this resistor series:
  • Three Resistors / Thru-bolt, Elongated
  • Four Resistors / Thru-bolt, Elongated

Part # D100xxxx

210 Series
Power Rating: 100 Watts
Core Length: 6.5"
Core Code: M
Push-In
Ohmite Part # 12E (cold rolled steel), 12S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA100
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6104-6.5
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6122M-6.5
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6105-6.5
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6123M-6.5
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6106-6.5
Check Availability
Three Resistors / Thru-bolt, Elongated
Ohmite Part # 6124M-6.5
Check Availability
Four Resistors / Thru-bolt, Elongated
Ohmite Part # 6125M-6.5
Check Availability


Part # D175xxxx

210 Series
Power Rating: 175 Watts
Core Length: 8.5"
Core Code: P
Push-In
Ohmite Part # 18E (cold rolled steel), 18S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA160
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6110-8.5
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6126P-8.5
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6111-8.5
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6127P-8.5
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6112-8.5
Check Availability
Three Resistors / Thru-bolt, Elongated
Ohmite Part # 6128P-8.5
Check Availability
Four Resistors / Thru-bolt, Elongated
Ohmite Part # 6129P-8.5
Check Availability


Part # D225xxxx

210 Series
Power Rating: 225 Watts
Core Length: 10.5"
Core Code: P
Push-In
Ohmite Part # 18E (cold rolled steel), 18S (spring steel)
Check Availability
PA Style
Ohmite Part # 7PA200
Check Availability
Single Resistor / Thru-bolt, Slotted
Ohmite Part # 6110-10.5
Check Availability
Single Resistor / Thru bolt Elongated
Ohmite Part # 6126P-10.5
Check Availability
Two Resistors / Thru-bolt, Slotted
Ohmite Part # 6111-10.5
Check Availability
Two Resistors / Thru-bolt, Elongated
Ohmite Part # 6127P-10.5
Check Availability
Three Resistors / Thru-bolt, Slotted
Ohmite Part # 6112-10.5
Check Availability
Three Resistors / Thru-bolt, Elongated
Ohmite Part # 6128P-10.5
Check Availability
Four Resistors / Thru-bolt, Elongated
Ohmite Part # 6129P-10.5
Check Availability
