Features
- SOT227 Style package
- Competitively priced
- 100 Watts dissipation in a small footprint
- Very low inductance
- Direct heatsink mounting
Due to a Non-Inductive design these elements are ideally suited for high frequency and pulse load applications. The FPA100 is available connected as 2 terminals or 4 terminals, in parallel or series.
Characteristics

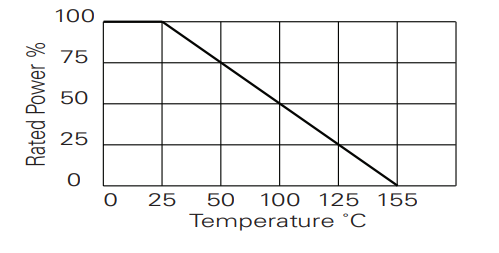

Derating Curve
Ordering Procedure
Standard Resistor Specify Series, Watts, Ohmic
Value, Tolerance Code, e.g.: FPA100 2R2 J
Versions 2, 3, 4 or 5 S5 Specify Series, Watts, Ohmic Value or Values, Tolerance Code and then Version Number,e.g.: FPA100 2R2 2R2 J version 4. Refer to versions available on page 2.

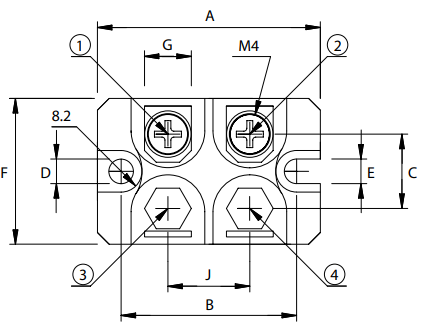

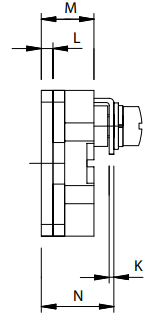

Dimensions
(mm)
Versions Available
The information contained herein does not form part of a contract and is subject to change without notice. ARCOL operate a policy of continual product development therefore, specifications may change.
It is the responsibility of the customer to ensure that the component selected from our range is suitable for the intended application. If in doubt please ask ARCOL
