FPA350 - 350W Thick Film Heatsink Resistors


This 350 Watt resistor is designed for various applications including traction; power supplies; speed drives; power supplies; control devices and robotics. This series is noninductive using thick-film technology and providing partial discharge performance.

The TAP package is best paired with Ohmite die-cut Thermal pads.

See the Ohmite offerings here:

TAP-TP1: TGH and TAP Series Thermal Pads | Ohmite Mfg Co

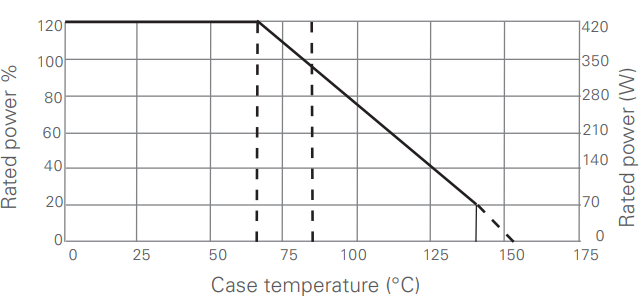

  • Power Dissipation: 350 Watts
  • Value Range: From R2 to 1M
  • Tolerance Options: ±5% or ±10% as standard
  • TCR Options: ±500ppm/ ºC (0.1 Ω ≤0.12 Ω) Standard / ±150ppm/ ºC (>0.12 Ω≤1M Ω) Standard
  • Maximum Voltage: 5000Vdc
  • Dielectric Strength: 7k Vrms / 50 Hz / 500 VA test time 1 min
